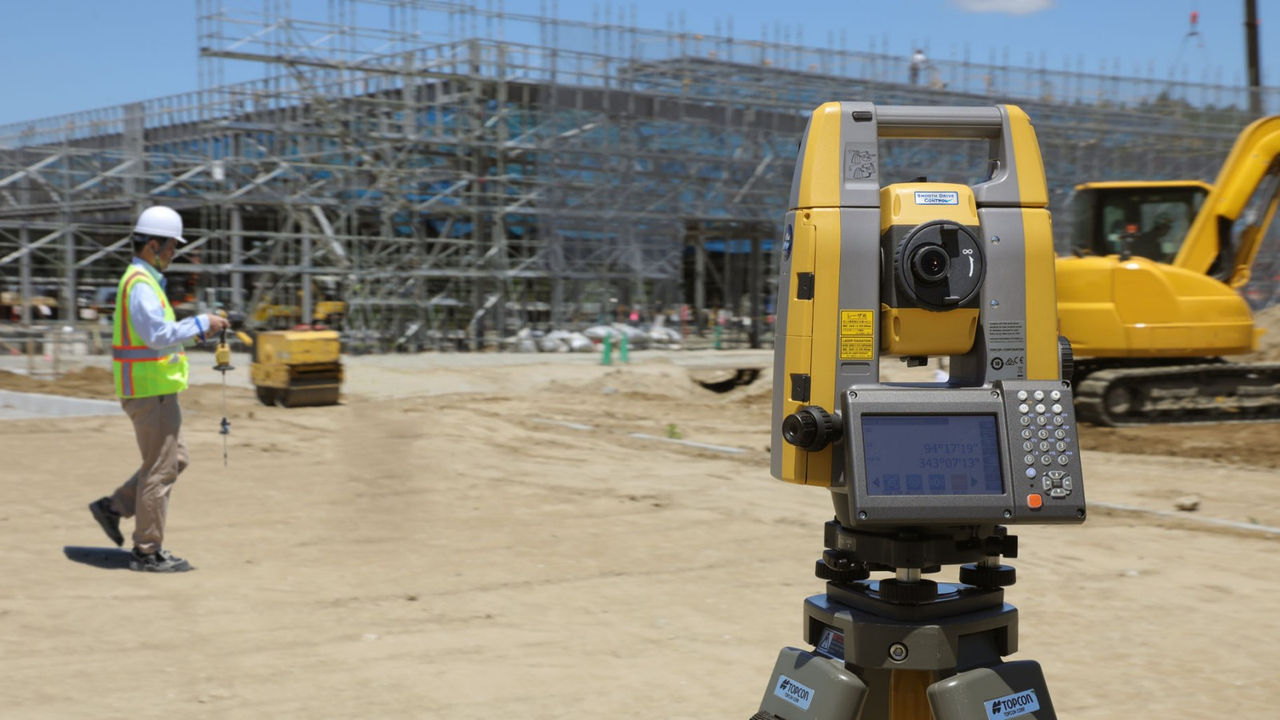

GT-1200/600 series

Geodetic Total Station

GT-1200/600 series Geodetic Total Station

TOPCON

Surveying

Civil Engineering

Total Stations

Geodetic Total Station GT-1200/600 series

Embedded Smooth Drive ControlTM
New motor control technology enhances prism tracking!


  • World’s fastest!* New Ultrasonic motor direct drive
  • World’s smallest!* Highly mobile super compact body
  • World’s lightest!* 5.7kg robotic total station
  • Best in class with Topcon manufacturing quality
  • Compatible with ICT construction solutions!



*Based on Topcon’s testing and research August 2020.


New motor control technologies for auto-tracking!

Newly adapted technologies to control Ultrasonic motor “Smooth Drive ControlTM

New motor control technologies for auto-tracking!
New motor control technologies for auto-tracking!

Robotic total station can quickly increase or decrease the motor’s speed. High speed rotation is a USM feature which reduces the rotation time to turn the units to the designated angle, face 1 / face 2 rotation.

Built-in “Smooth Drive ControlTM” technology smooths motion rotation under any conditions. “Smooth Drive ControlTM” technology enhances the durability of the ultrasonic motor. The durability has been confirmed through quality test.

New motor control technologies for auto-tracking!

Highly accurate positioning information expands your opportunity!

Straightforward and streamlined field work
Straightforward and streamlined field work

Excellent basic performance

Auto-aiming

Precise measurements can be done by a rough aim and a light touch on the “Trigger button” without focusing the lens or doing other operations.
Auto aiming provides consistent accuracy and speed regardless of the operator’s skill levels and other conditions.

Auto-tracking

Enhanced prism-tracking enables you to operate under virtually any Conditions, even when you lose the line-of-sight because of obstructions or strong sunlight.
Even if a prism lock is lost, you can easily turn GT, reacquire the prism with RC-5A and go back to work smoothly.

Maximizing measurements and field performance
Maximizing measurements and field performance

Hybrid Positioning Survey System (Upgradable)

Hybrid Switch from Robotic Total Station to GNSS receivers with single-button tap !

Survey Everywhere

If line of sight is not there, we use GNSS. If no open sky, we use the robotic total station.

Hybrid Search

Turns robotic total station toward the prism location based on GNSS position information.

As a high precision sensor to perform accurate Machine Control System
As a high precision sensor to perform accurate Machine Control System

LPS 3D-MC (Upgradable)

Spreading to precise construction execution, Robotic Total Station is able to control heavy machineries in 3D ! There is no need of open sky !

LPS Dozer, LPS Excavators, LPS Grader, LPS Compaction roller, LPS Paver

The world’s Smallest and Lightest
The world’s Smallest and Lightest

This Robotic Total Station is the world’s smallest and lightest. Moreover, it is the same weight as a manual total station. So that it is easier to carry and set up at your projects even in mountains.
Mobility performance is better than before at difficult terrain areas.

* As Robotic Total Station by our research in August 2020

10Hz High rate data communication
10Hz High rate data communication

Robotic Total Station is able to communicate the data 10Hz speed for survey work purpose. So it enables us to stake out faster than conventional way thanks to high rate data communication.

* The application which is applicable to this function is going to be released.

Trigger key
Trigger key

Just rough aim towards the target prism and lightly press “Trigger button” to precisely aim and measure automatically with ease.

Dustproof and Waterproof: IP65 design
Dustproof and Waterproof: IP65 design

Provides protection from dust and driving rain as well as other inclement weather conditions.
Operates in temperatures from -20 to +50ºC.

Large display
Large display

Large and high-resolution WVGA display provides clear visibility in sunlight.
Moreover, the large icons improve operability.

Bright, Sharp Guide Light
Bright, Sharp Guide Light

The Guide Light allows you to instantly recognize the line between the instrument and the stakeout line, with clearly visible Green and Red lights.

Video

GT-1200 Smooth Drive Control

Related Item

  • TOPCON

    Civil Engineering

    Surveying

    Total Stations

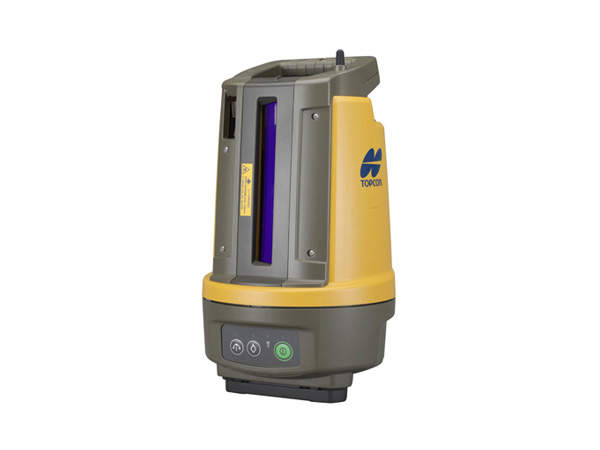

    LN-150 "Layout Navigator"

    Easy survey operation

    TOPCON

    Civil Engineering

    Surveying

    Total Stations

  • TOPCON

    Surveying

    Civil Engineering

    Total Stations

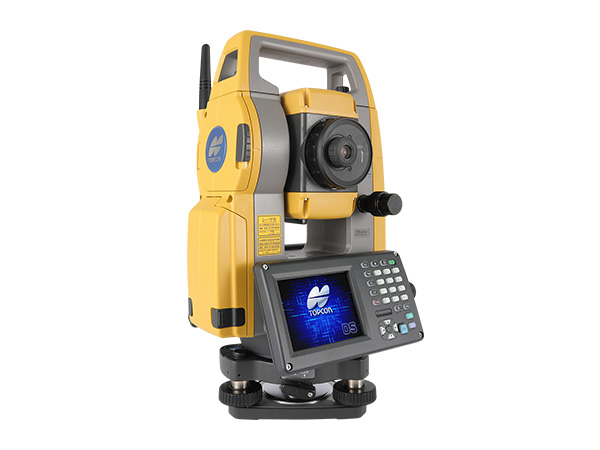

    OS-200 series "Onboard Station"

    For professionals like you

    TOPCON

    Surveying

    Civil Engineering

    Total Stations

  • TOPCON

    Surveying

    Civil Engineering

    Total Stations

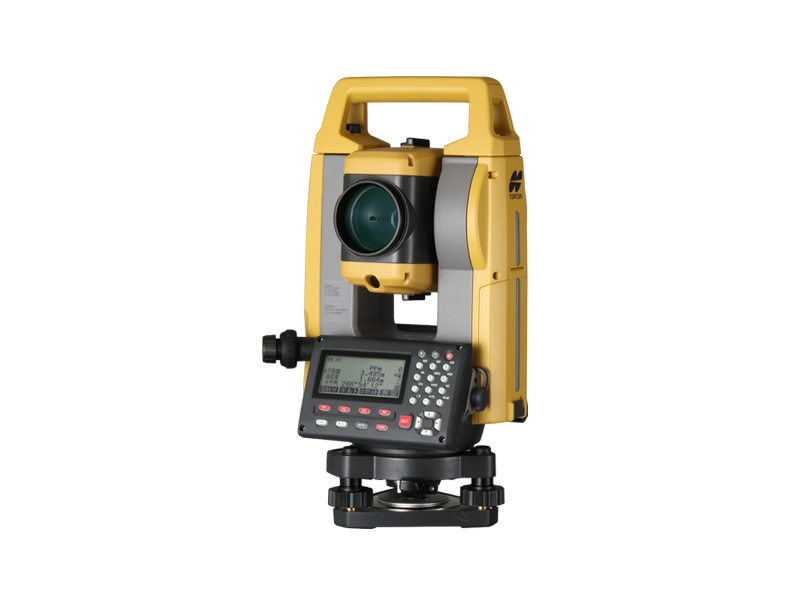

    GM-100 series "Geodetic Measurement Station"

    Evolving Entry-Level Total Station

    TOPCON

    Surveying

    Civil Engineering

    Total Stations

  • TOPCON

    Surveying

    Civil Engineering

    Total Stations

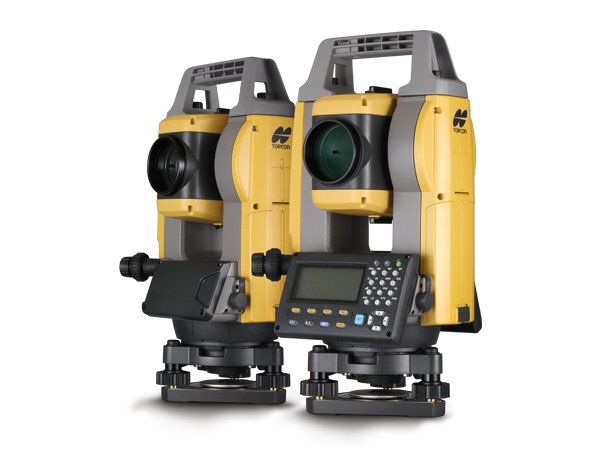

    GM-50 series "Geodetic Measurement Station"

    High Quality, High Return!

    TOPCON

    Surveying

    Civil Engineering

    Total Stations

Related Case Study

  • SOKKIA

    Civil Engineering

    Total Stations

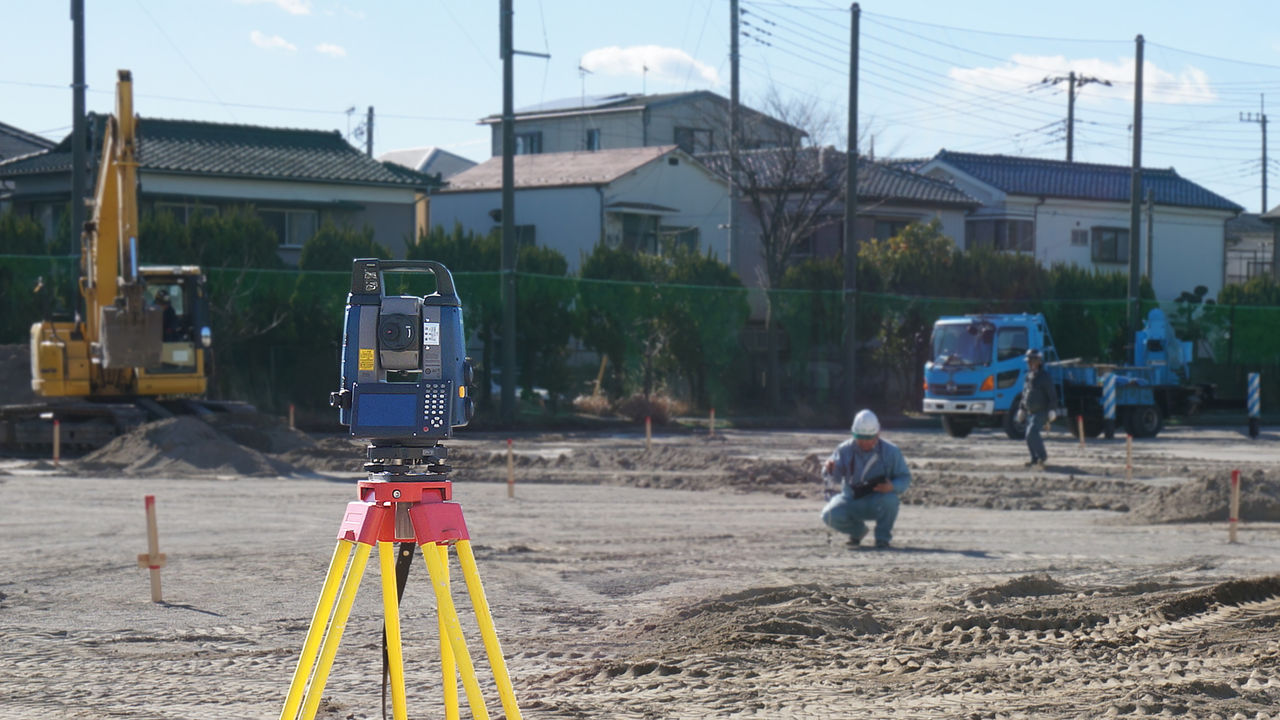

    iX-1005/Nagayasu Kogyo Co., Ltd./Mar.2017
