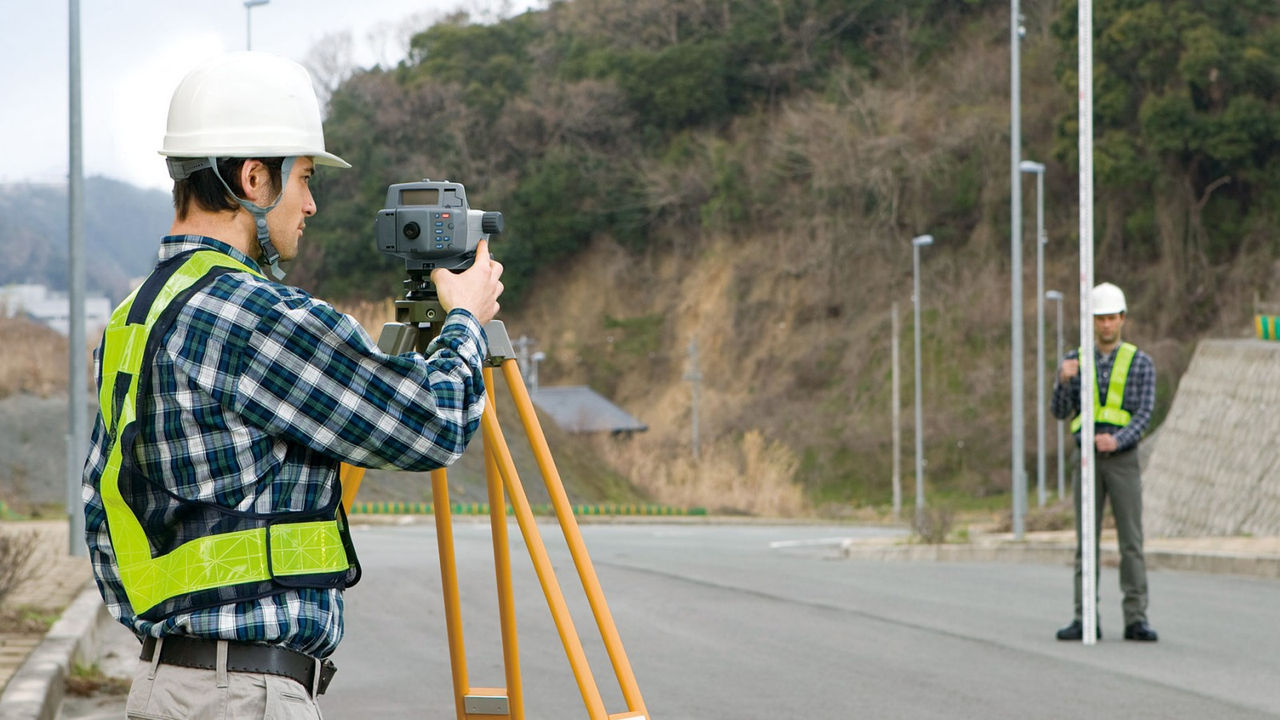

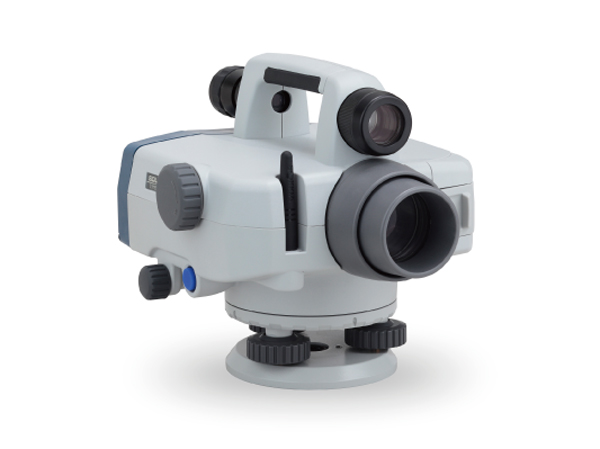

SDL30 / SDL50
Digital Level
Save Time with Innovative, Industry-Leading Technologies
Simply focus on the RAB-Code staff and press a button. The measurement result of both height and distance is displayed on the screen in 3 seconds. Digital levels minimize human error and maximize the ease of leveling work, allowing an increased level of productivity and cost performance.
SDL30
Height accuracy of 1.0mm can be achieved using fiberglass RAB Code staves. With the top-of-the-line invar RAB-Code staves, 0.6mm accuracy is a reality (Standard deviation for 1km double-run leveling).
The SDL30 employs a market proven pendulum compensator with magnetic damping system. Its working range is ±15′.
The SDL30 calculates height difference, elevation, setting-out and more. When measuring height of the ceilings, bridges and other objects, there is no need to change the measuring mode when the staff is held upside-down.
The internal memory holds 2,000 points of data in a maximum of 20 job files.
Measured data can be exported in CSV format using the software “SDL TOOL”.
SDL50
The SDL50 is a reliable, easy to use digital level ideal for the construction field.
Height accuracy of 1.5mm can be achieved using fiberglass RAB-Code staves (Standard deviation for 1km double-run leveling).
The SDL50 is equipped with the same compensator as the SDL30, assuring a reliable, wide compensating range ±15′.
The SDL50 incorporates the convenient programs to help speed up construction work.
The internal memory holds 2,000 points of data in a maximum of 20 job files.
Measured data can be exported in CSV format using the software “SDL TOOL”.
