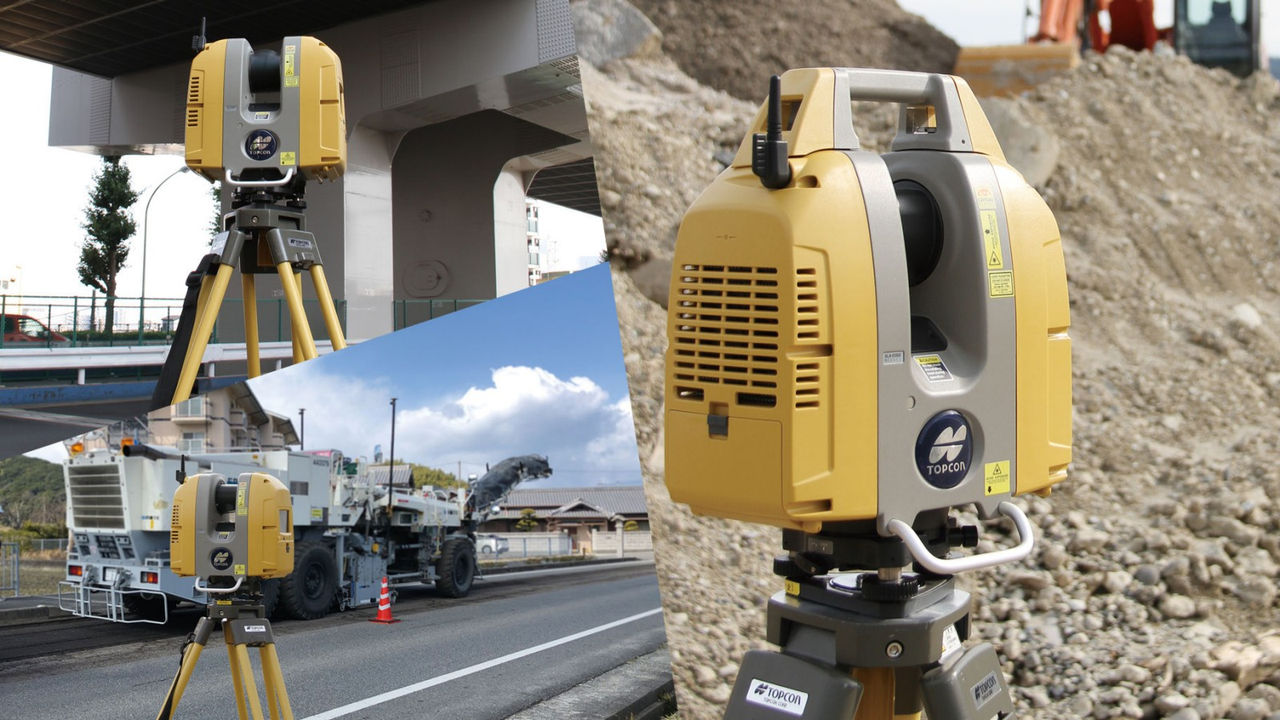

GLS-2200 3D Laser Scanner

Best fit for ICT construction, expanding various applications
Precise 3D point cloud data maintains accuracy


  • Resection, occupation/backsight on-board program
  • 360° prism, long-range target scan
  • Surface accuracy 1mm (σ)
  • HDR image capture creates clear point cloud data
  • Remote control
  • Japanese quality

Effective workflow and qualified point cloud to expand various applications such as Earthmoving, Paving and Structure Building

Effective workflow and qualified point cloud to expand various applications such as Earthmoving, Paving and Structure Building

Effective workflow with verified point cloud data

Effective workflow with verified point cloud data
Long-range target scan

200m range for the resection or traverse methods greatly reduces the need to change the target positions, even on large sites.

360°prism compliant

Scan targets from anywhere without changing the direction of the target scan.

Supporting Various Registration Methods

Supporting Various Registration Methods

The GLS-2200 can execute field work similar to that of total stations by supporting various registration methods.

Supporting Various Registration Methods

Improved point cloud data quality

Surface accuracy 1mm*(σ)

Road mode is a fit for ICT paving construction, as-built and QA/QC for BIM.
* Standard deviation (1 σ) 1mm. Processed with MAGNET Collage.

HDR image capture creates clear point cloud data

Normal images of 3D point cloud data tend to have washed-out whites and unrecognizable dark spaces. The colorized 3D point cloud data creates HDR images with more natural and realistic colors.

HDR image capture creates clear point cloud data

Various Functions

Three modules are available for measuring different ranges
Three modules are available for measuring different ranges

The product measures distances ranging from short, interior measurement of a facility to asbuilt civil engineering projects and other large structures.

Supports eight measurement modes
Supports eight measurement modes

GLS-2200 provides a wide range of measuring modes to accommodate different job site demands to achieve accurate measurement and increase productivity regardless of site conditions.

Road mode
Road mode

The road mode can scan even dark-colored surfaces such as paved asphalt and ICT paving construction.

Easy and intuitive on-board control software
Easy and intuitive on-board control software

With the on-board control software, the scanning can be simply started with one-touch of button.
Together with color graphical display, scanning operation can be intuitively proceeded.

WLAN Connectivity for connecting to an Android Tablet*
WLAN Connectivity for connecting to an Android Tablet*

WLAN capability enables users to remotely control their Android tablets. All activity in the tablet is relayed to the scanner.

* Offered as an option in some areas.

Dual cameras
Dual cameras

Dual coaxial 5MP cameras capture both high-speed 170° wide angle and 8.9° narrow images.

Dual cameras
Dual-axis-tilt compensation secures the right registration
Dual-axis-tilt compensation secures the right registration

The dual-axis-tilt compensation (x/- 6′) is identical to that available on total stations. The scan data can be accurately registered using the MAGNET Collage post-processing software.

MAGNET Collage seamlessly connects 3D solution to the site.

The MAGNET College 3D mass-data software supports processing, editing, exporting and integration of point-cloud data to rapidly create 3D models.

MAGNET Collage seamlessly connects 3D solution to the site.

Video

3D Laser Scanner GLS-2200

Related Item

  • TOPCON

    Surveying

    Civil Engineering

    Building Construction

    3D Scanners

    Total Stations

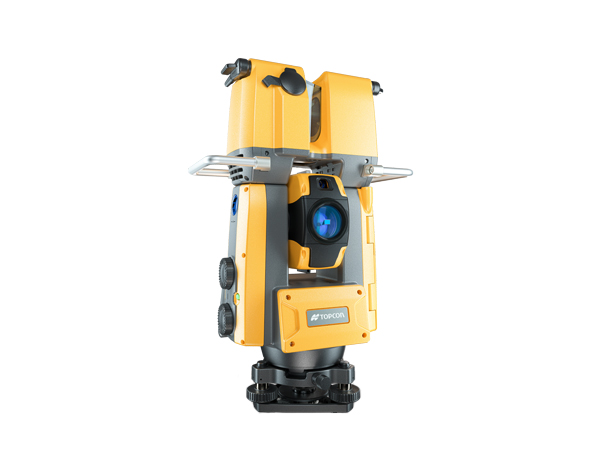

    GTL-1200 "Laser Scanner Total Station"

    TOPCON

    Surveying

    Civil Engineering

    Building Construction

    3D Scanners

    Total Stations

  • TOPCON

    Surveying

    Civil Engineering

    Building Construction

    Software

    3D Scanners

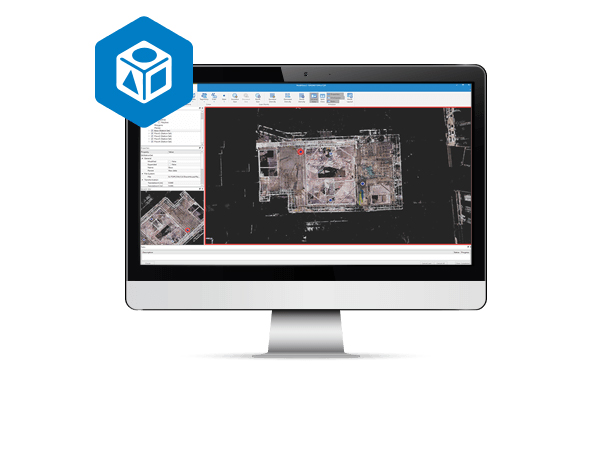

    MAGNET Collage "Field scanning control and processing software"

    Point cloud processing made easy

    TOPCON

    Surveying

    Civil Engineering

    Building Construction

    Software

    3D Scanners

  • TOPCON

    Civil Engineering

    Surveying

    Building Construction

    Software

    3D Scanners

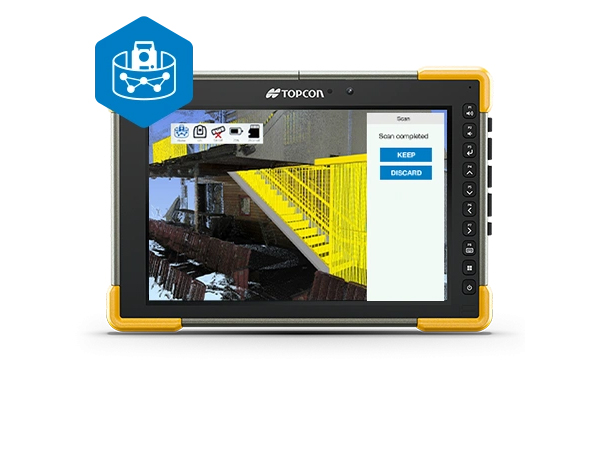

    Collage Site "Field scanning control and processing software"

    Reduce back-office workflows

    TOPCON

    Civil Engineering

    Surveying

    Building Construction

    Software

    3D Scanners

Related Case Study

  • TOPCON

    ClearEdge3D

    Surveying

    3D Scanners

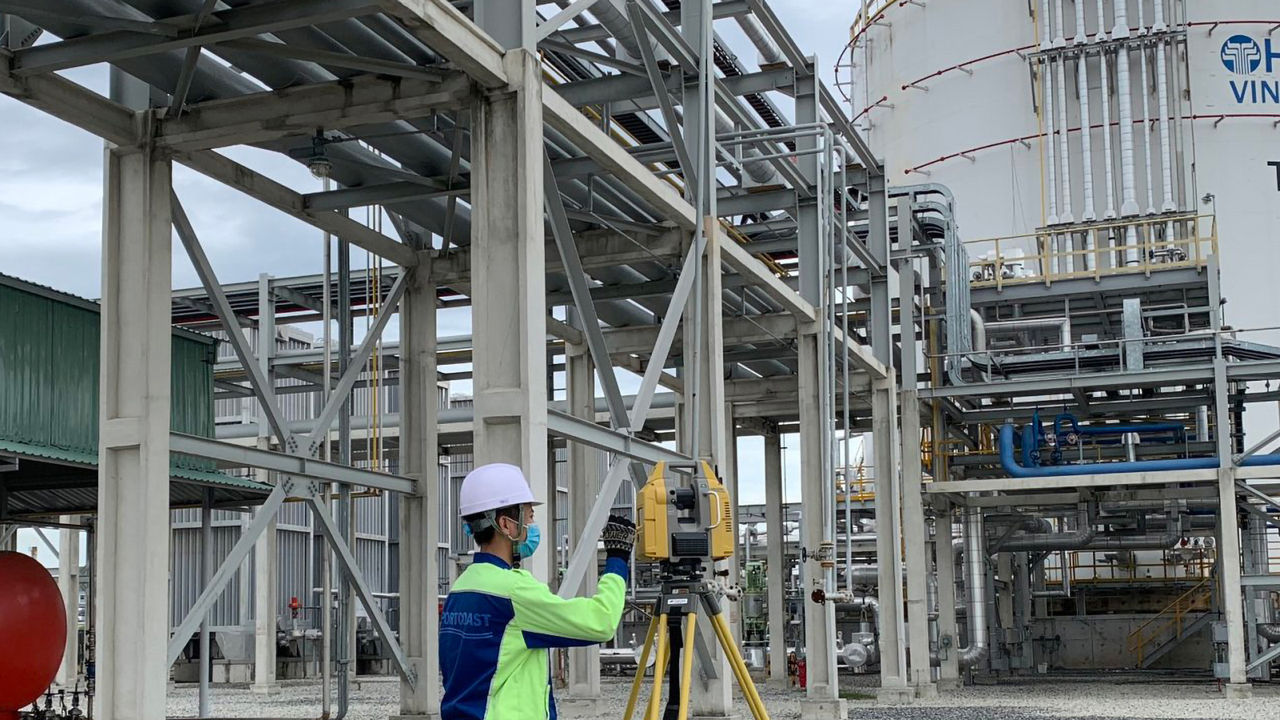

    GLS-2000/PORTCOAST CONSULTANT CORPORATION/Mar.2023

    Topcon scanning solution speeds up in pipeline survey work

    TOPCON

    ClearEdge3D

    Surveying

    3D Scanners

  • TOPCON

    Surveying

    3D Scanners

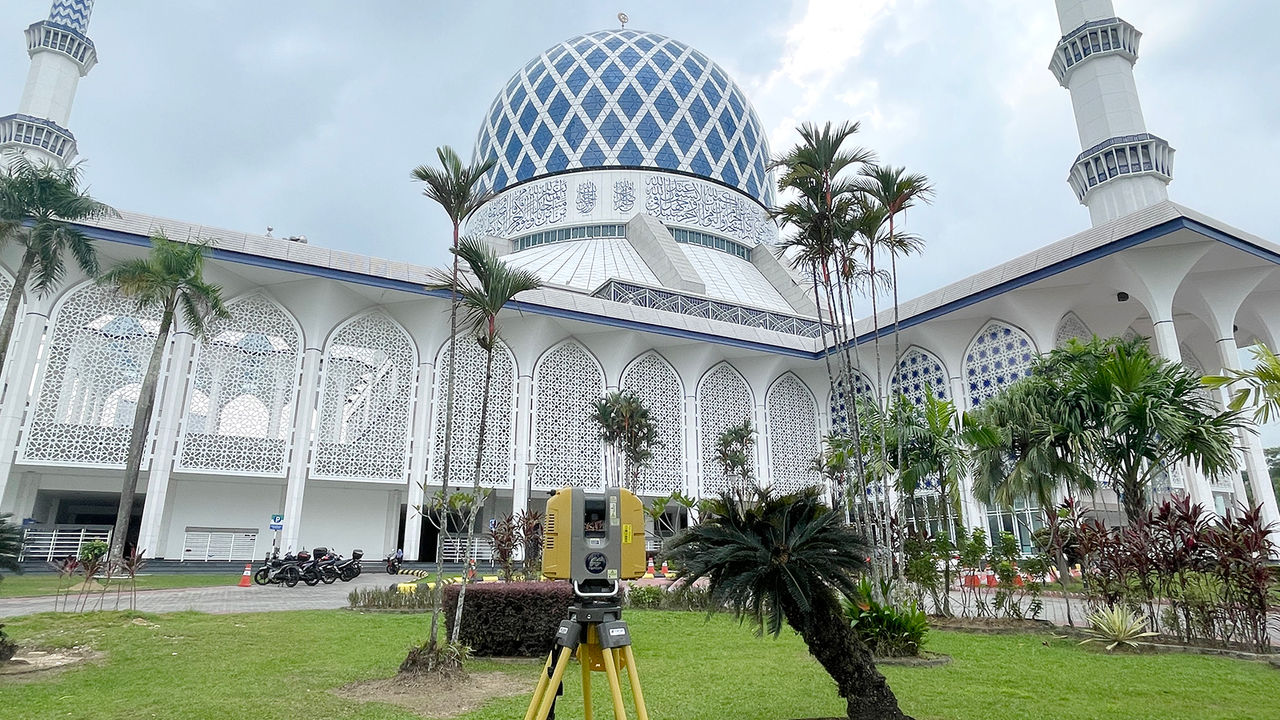

    GLS-2000/NZ Survey Consultant Sdn Bhd/Mar.2023

    From topographical surveying to as built surveying

    TOPCON

    Surveying

    3D Scanners

  • TOPCON

    Building Construction

    3D Scanners

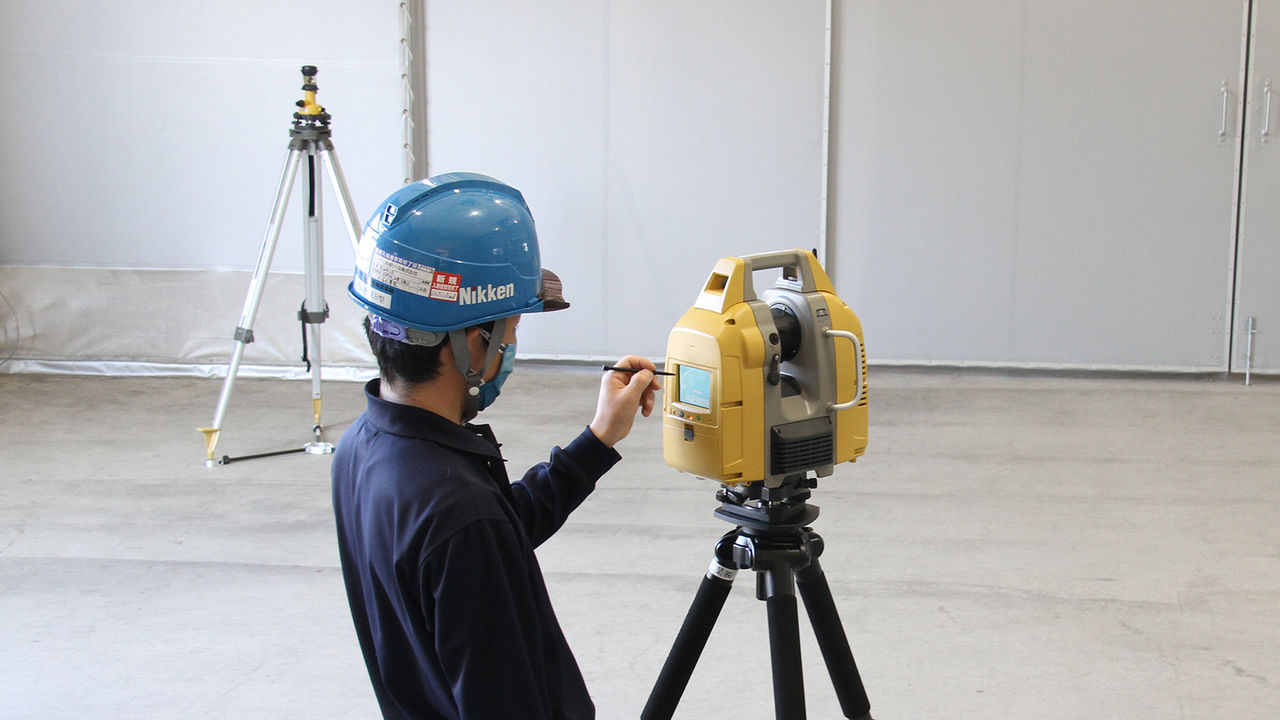

    GLS-2200 - Rithm/Nikken Lease Kogyo Co., Ltd./Dec.2021
