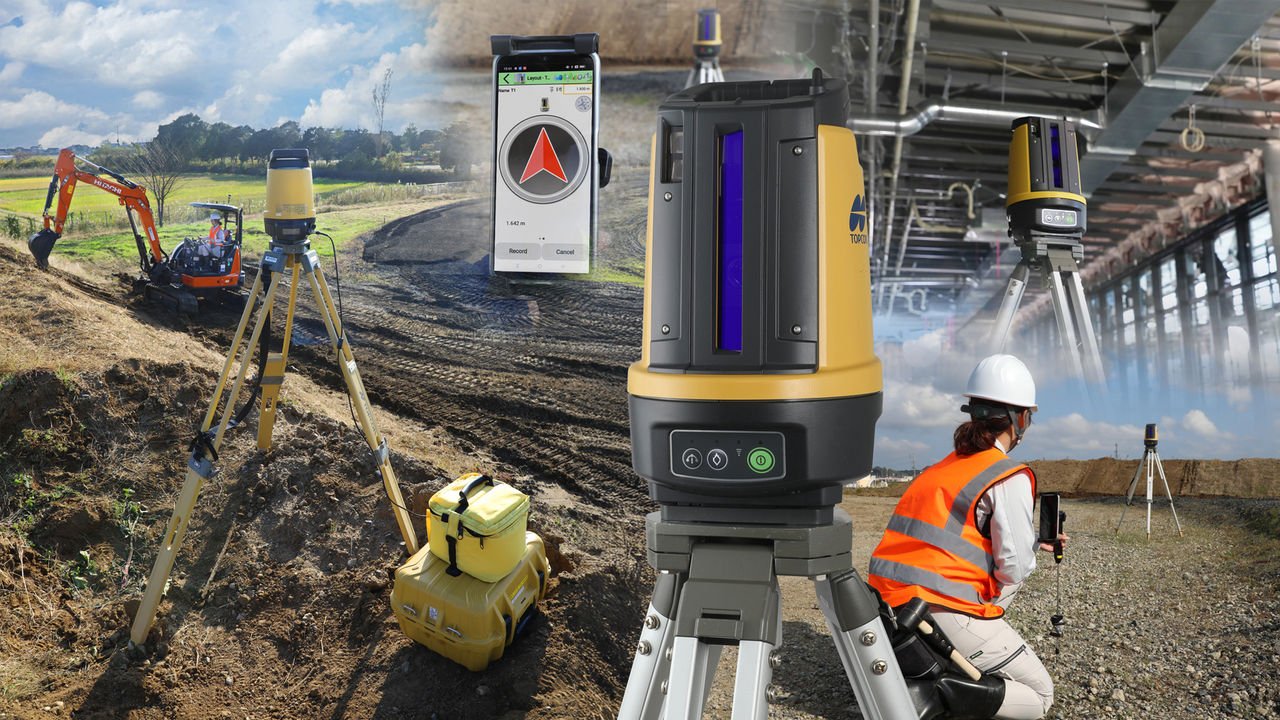

LN-160
Layout Navigator
Easy to improve your stake-out work !
- Easy instrument set up with Self-leveling
- Expanded range of measurement! Even sharp inclines are handled with ease
- Reduce working hours
- Easy guidance
- Android device as controller
- Work long hours with peace of mind! Equipped with an external power supply port
- Equipped with Laser plummet
Easy and fast !
Anyone can do stake-out work!
Simple, Easy and straightforward operation
Easy instrument set up with Self-leveling
After the Power is turned ON, the instrument automatically starts leveling itself.
No need to check the bubble level for the installation.
Easy guidance
The Guide light guides operator to recognize the stake-out line with clearly visible Green and Red lights.
Expanded range of measurement! Even sharp inclines are handled with ease
The tilt angle area has been expanded, with a maximum elevation angle of +55°, and a maximum depression angle of –32°. The measurement range is 260m in diameter, ensuring sufficient working space for everything from ICT with construction machinery to stake-outs for civil engineering.
Android device as controller
Android device can be used as a controller of the instrument and measurement.
The exclusive control software, “TopLayout” is a free software. Transferring the design coordinate data and the results between Android device and computer can be done by e-mail or cloud service.
Reduce working hours
The location of the prism is displayed on the mobile phone in real-time smoothly. (Update rate is 20 times per second)
Usage times 120% longer compared with conventional models! Allows for 6 hours of continuous use per 1 battery
Improve energy use of the battery and increase continuous use time. Two batteries are included, so you can use it all day long as an reliable products.
Control Software for Android Device , “TopLayout”
TopLayout
A free software, downloadable from Google Play, controls Instrument orientation measurement, Topographic measurement, Layout operation/guidance, data transfer.
Advanced model compatible with machine control and various software!!
- Laser Plummet
- External power supply port
- Machine Control Support
- Supported software TopLayout / Topcon Field / Topcon Digital Layout / Pocket 3D
Use for long hours with confidence! Equipped with an external power supply port
Equipped with an external power supply port. It is now possible to supply power to places without electrical outlets, such as construction sites, so you can use it with confidence during long periods of continuous work without any downtime.
