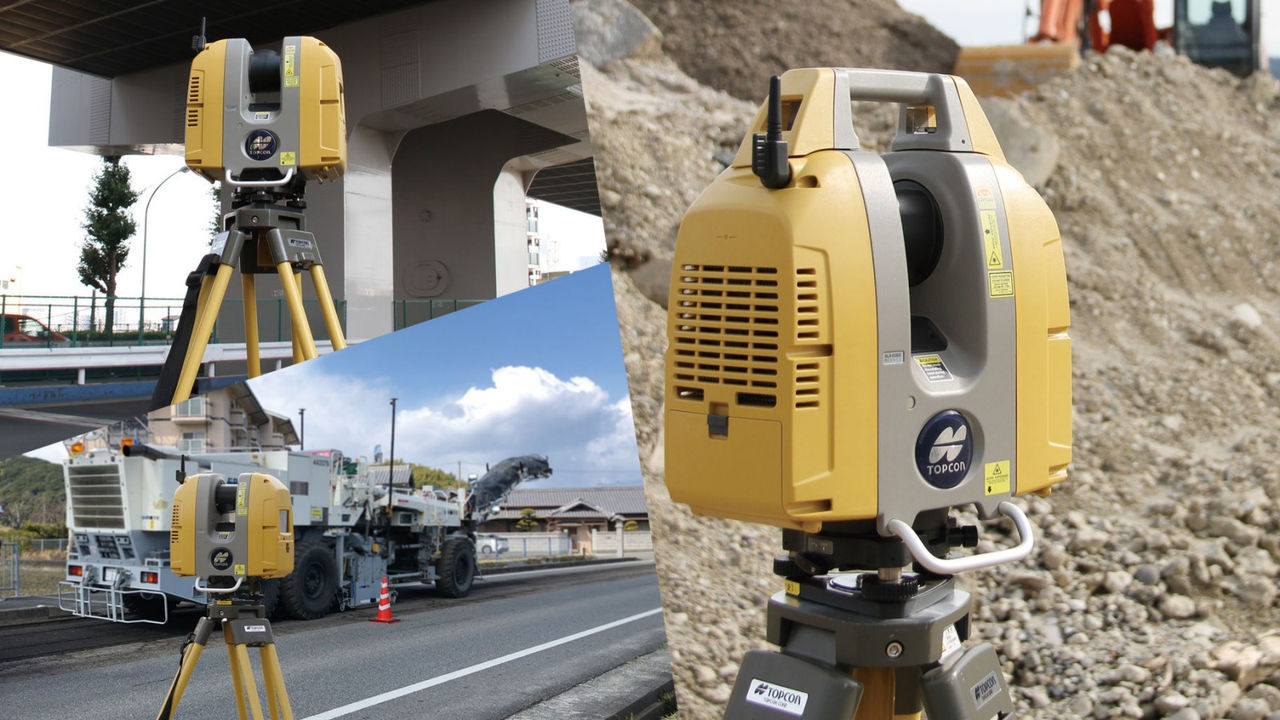

GLS-2200
3D Laser Scanner
Best fit for ICT construction, expanding various applications
Precise 3D point cloud data maintains accuracy
- Resection, occupation/backsight on-board program
- 360° prism, long-range target scan
- Surface accuracy 1mm (σ)
- HDR image capture creates clear point cloud data
- Remote control
- Japanese quality
Effective workflow and qualified point cloud to expand various applications such as Earthmoving, Paving and Structure Building
Effective workflow with verified point cloud data
Long-range target scan
200m range for the resection or traverse methods greatly reduces the need to change the target positions, even on large sites.
360°prism compliant
Scan targets from anywhere without changing the direction of the target scan.
Supporting Various Registration Methods
The GLS-2200 can execute field work similar to that of total stations by supporting various registration methods.
Improved point cloud data quality
Surface accuracy 1mm*(σ)
Road mode is a fit for ICT paving construction, as-built and QA/QC for BIM.
* Standard deviation (1 σ) 1mm. Processed with Collage Office.
HDR image capture creates clear point cloud data
Normal images of 3D point cloud data tend to have washed-out whites and unrecognizable dark spaces. The colorized 3D point cloud data creates HDR images with more natural and realistic colors.
Various Functions
Three modules are available for measuring different ranges
The product measures distances ranging from short, interior measurement of a facility to asbuilt civil engineering projects and other large structures.
Supports eight measurement modes
GLS-2200 provides a wide range of measuring modes to accommodate different job site demands to achieve accurate measurement and increase productivity regardless of site conditions.
Road mode
The road mode can scan even dark-colored surfaces such as paved asphalt and ICT paving construction.
Easy and intuitive on-board control software
With the on-board control software, the scanning can be simply started with one-touch of button.
Together with color graphical display, scanning operation can be intuitively proceeded.
WLAN Connectivity for connecting to an Android Tablet*
WLAN capability enables users to remotely control their Android tablets. All activity in the tablet is relayed to the scanner.
* Offered as an option in some areas.
Dual cameras
Dual coaxial 5MP cameras capture both high-speed 170° wide angle and 8.9° narrow images.
Dual-axis-tilt compensation secures the right registration
The dual-axis-tilt compensation (x/- 6′) is identical to that available on total stations. The scan data can be accurately registered using the Collage Office post-processing software.

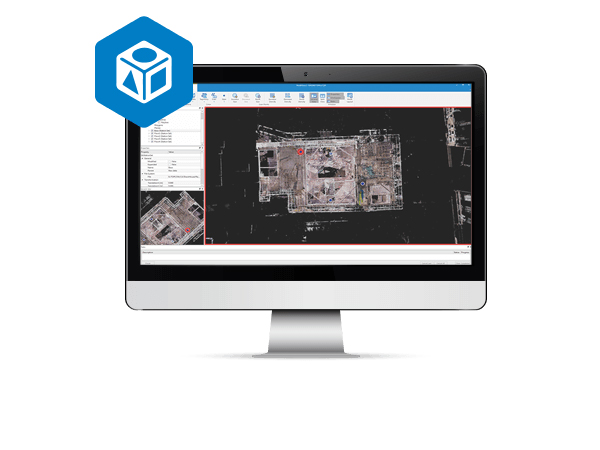

Collage Office seamlessly connects 3D solution to the site.
The Collage Office 3D mass-data software supports processing, editing, exporting and integration of point-cloud data to rapidly create 3D models.
Brochure
Video
3D Laser Scanner GLS-2200
